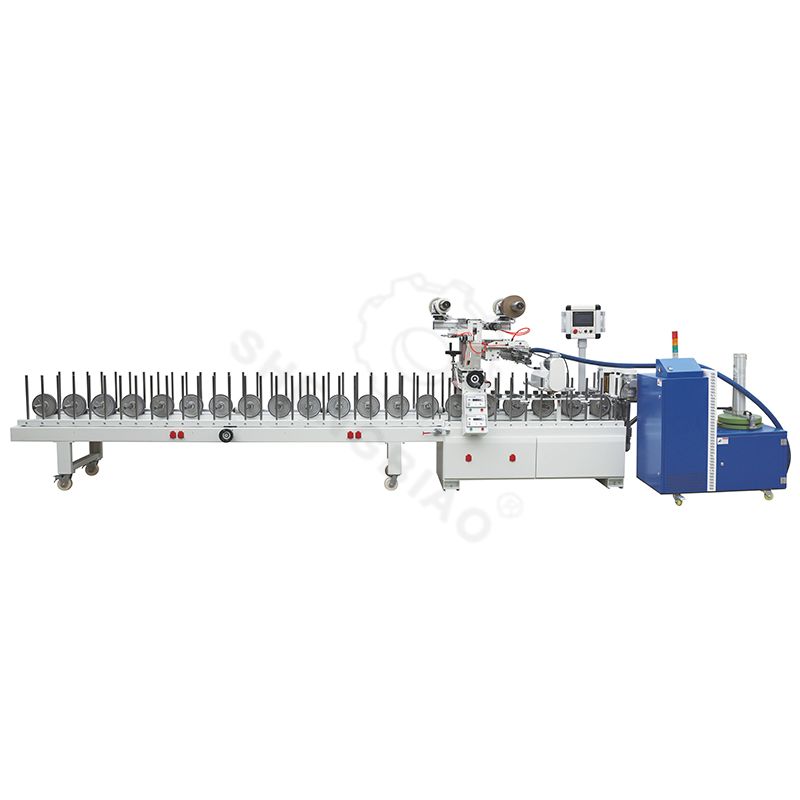

What is profile wrapping machine?

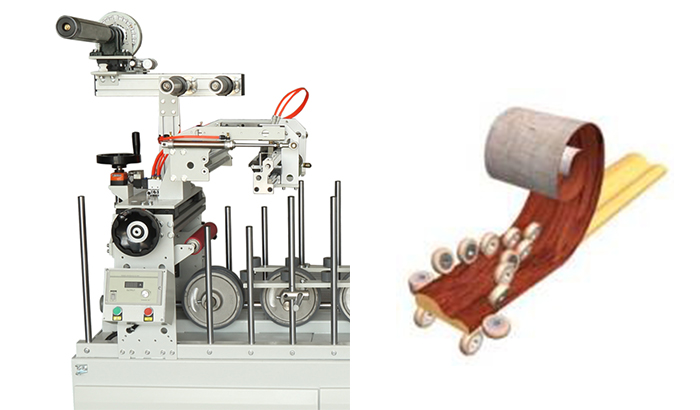

Profile wrapping machine Working Principle device drives the objects to be clad and the cladding materials to move synchronously. Adhesives or hot-melt adhesives, etc. are used to paste the cladding materials onto the surface of the objects, and a certain amount of pressure and temperature are applied to make the cladding materials fit closely, thus achieving the cladding of the objects.
The profile wrapping machine is a kind of equipment used to cover various materials (such as PVC, papers, veneer,PP,CPL,leathers, etc.) on the surface of other objects, and it is widely applied in multiple industries including furniture, doors and windows, automobiles, electronics, etc. The following is the relevant introduction:
Working Principle:
The mechanical transmission device drives the objects to be clad and the wrapping materials to move synchronously. Adhesives or hot-melt adhesives, etc. are used to paste the cladding materials onto the surface of the objects, and a certain amount of pressure and temperature are applied to make the cladding materials fit closely, thus achieving the cladding of the objects.
Structural Composition

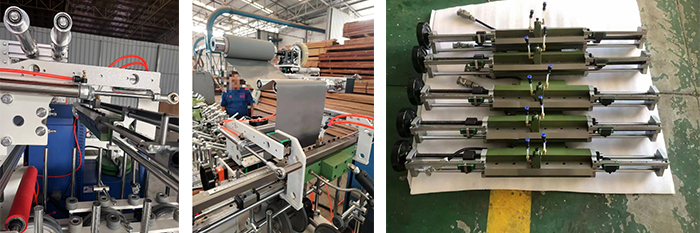

- Unwinding mechanism: It is used to place the rolls of raw materials to be clad, such as plastic film rolls, wood veneer rolls, etc., and it can automatically unwind and control the feeding speed of the materials.
- Gluing mechanism:
It evenly coats the adhesive on the surface of the cladding materials or the objects to be clad. According to different types of adhesives, there are hot-melt adhesive gluing systems, water-based adhesive gluing systems, etc., including components such as glue tanks and glue rollers.

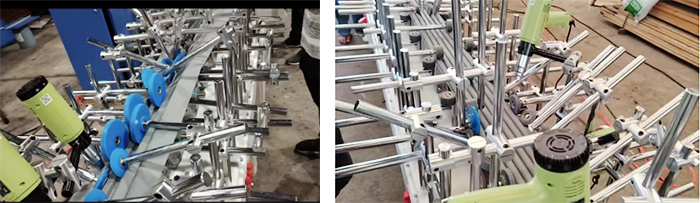

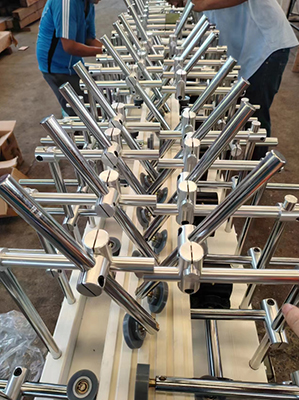

- Bonding mechanism: Through devices such as pressure rollers ,the materials after gluing are closely bonded to the objects to be clad, and appropriate pressure is applied to make the two bond firmly.

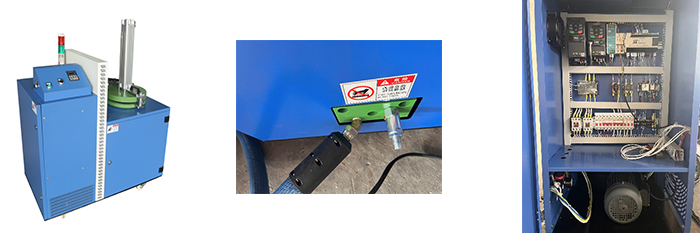

- Heating mechanism: For some processes that require heating, such as when using hot-melt adhesives, the heating mechanism can heat the adhesive or the cladding materials to make them reach the appropriate bonding temperature. It usually consists of components such as heating tubes and temperature controllers.
Application Fields
- Furniture manufacturing: It is used to clad components such as the door panels, cabinets, and table legs of furniture. Materials such as wood veneers, melamine boards, and PVC films can be used for cladding to improve the appearance quality and texture of the furniture.

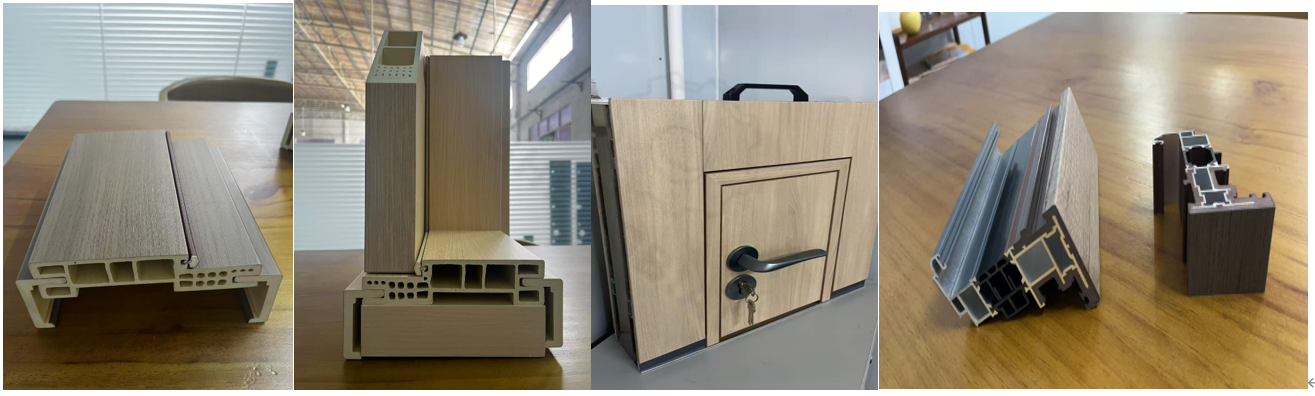

- Doors and windows industry: It is used for cladding door and window profiles. For example, plastic films or aluminum foils are used to clad aluminum alloy door and window profiles, which plays a role in protection and decoration.
- Automobile interior: It is used to clad components such as automobile seats, instrument panels, and door interior panels with materials such as leathers and fabrics to improve the comfort and aesthetic appearance of the automobile interior.
- Electronics products: It is used for cladding the casings of electronic products, such as mobile phone cases and computer cases. Materials such as plastic films and carbon fibers can be used for cladding to increase the abrasion resistance and aesthetic appearance of the products.
How many types of profile wrapping machines?
According to different laminating materials, it can be divided into:
PVC profile wrapping machines,
wood veneer profile laminating machines,
leather profile wrapping machines,
CPL,pp,Paper profile wrapping machines ,etc.;
according to the shape and size of the objects to be wrap, it can be divided into
flat laminating machines
muti-profile wrapping machines, etc.;
profile wrapping and laminating machine
according to the degree of automation,
it can be divided into
manual profile wrapping machines,
semi-automatic laminating machines,
and fully automatic profile wrapping machines.
According to the glue type,it is have
Cold glue profile wrapping machine
EVA glue profile wrapping machine
PUR profile wrapping machine
